Details of pages and jekyll build workflow

So the callGraph script is neat, but nobody can be expected to have in-depth knowledge of every language they’re attempting to address at first blush. The initial graphs this produced for me were limited, and didn’t list all of the function calls. I found that the regular expressions callGraph uses to recognize function definitions can be extended with optional non-reference generating atoms. In this case, it was missing an understanding of javascript async functions, so I did a quick fork and pull request to insert

...(?:async\s+)?...

After this addition on my local fork, callGraph now successfully recognizes async function definitions, of which there are many in this github actions workflow. callGraph tries to match up specific function definitions and function calls, and without being able to recognize both a definition and a call, it will fail to illustrate that connection. I’m certainly not going on some quest to extend it for all of the myriad ways in which javascript allows functions to be defined or called, that would be the way of madness, and far outside the scope of this project. I just need it ‘good enough’

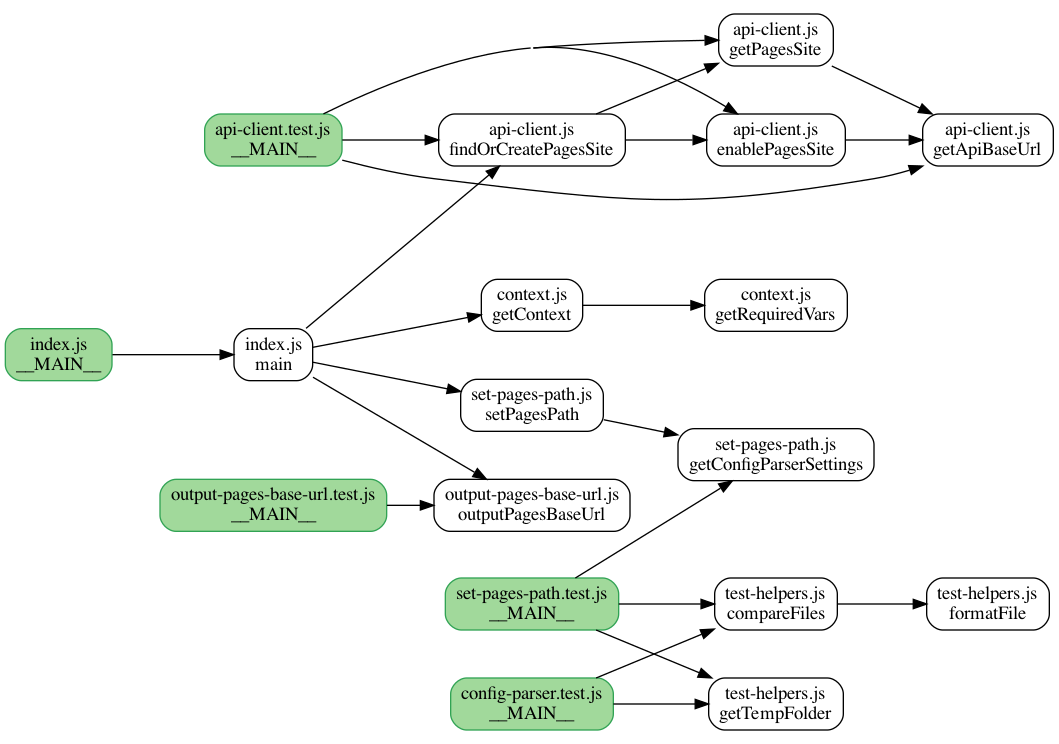

Having extended it, I now have a more complete call graph:

With the -verbose flag, callGraph also lists the externally referenced files, such as modules. It assumes, however, that such files will end in a file extension matching the passed -language argument. So, it sees and tells me about the references to the various nuxt.js and etc files, but because those are merely read from in order to populate a blank configuration file, and have no functions associated with them, they don’t show up on the call graph. I know to look for their references, though.

Configure pages meat and potatoes

There are several operations about which I do not care. I got really lost in the weeds trying to figure that out. The configure-pages action has several outputs, and as far as I can tell, none of the other actions consume them, per their respective action.yml files. The main thing that configure-pages seems to be concerned with for the purposes of the workflow, is calling out to the github api and making sure that there exists an endpoint to which the built site can be pushed and hosted, enabling the functionality if needed by using a github token, either one auto-generated in the context of the action runner which it would be if it’s hosted by github, or a personal access token otherwise. Essentially, none of the action for configuring pages is relevant to local development, it’s almost all external to the cloud provider, in this case github pages hosting per their API, or informative. Otherwise, it’s establishing basic config files for nuxt, next, sveltekit, or gatsby, none of which are relevant here.

There are several things I learned while I was up to my eyeballs in it, however.

What I learned about Github Actions

So an action.yml file defines a bunch of properties which are relevant to the actions runner. Locally, this is still my installed version of nektos/act. Critically, this file defines inputs, if they are required, and their defaults. I passed act the debug flags and captured all output to a log, and this debugging output is fairly thorough, so I’m seeing that there are no inputs of the kinds I think are missing being passed.

As I was digging into the configure-pages action, I found that one of the first index.js calls is to getContext(), which itself calls getRequiredVars(). getContext() might better be understood as validateContext(), since that’s its primary function. If one of the required variables is undefined, it throws an error and the whole operation halts.

But

There’s not a way for that to happen under normal circumstances. I certainly saw that, and thought, “now wait a second, getRequiredVars() checks through several inputs I haven’t supplied, including static_site_generator, which is only used if the generator is not jekyll. No default value is specified, why isn’t this failing?”

Glory of open source

My answer was actually in the core github actions toolkit. I’ll explain, but I missed the answer the first readthrough.

My first thought was that in action.yml, the actions runner is configured to use the boolean parameter required if a default is not set. So, I searched for “input default when required false”, and found several results.

Critically, a stackoverflow question, github issues, and some github discussion, pertaining to validating that required input is actually passed in.

This only gave me partial insight. For one, that issue, I think, was moved from the actions/toolkit/core repository to the actions/runner repo, where it now lives. Per the context clues of the discussion, their saying that it’s out of scope for the toolkit.

In any event, they pointed to the getInput() function from the core repository. If you are paying attention, you’ll see the answer right away.

I didn’t see the answer right away

Surely, I thought, since this is a runner issue, as they say, I should check the runner source code. The runner is evidently written in C#. Although I’ve not written C#, honestly, imperative-OOP language A is imperative-OOP language A. This is not crammed with weird language idioms, it’s fairly straightforward.

Through some hunting around with github’s search, I found the function call that actually processes the default value for an input. As my hypothesis as yet unchanged goes, if the actions runner is silently inserting the value of the required parameter when a default is not found, this is where it will be.

It’s not, but it does refer to a unique token I can search for, input-default-context. That leads to a json schema definition.

Damn. The action runner pulls the input default from the default parameter, and nowhere else. Well, that’s the github action runner source code, what about act source code?

The answer wasn’t in act source either

C# is pretty conventional if you know OOP and imperative code. It’s fundamentally similar to java, for instance. Go is completely new to me, so it took some amount of reading before I was really grasping what was going on. The callGraph for act is larger than I feel comfortable putting on a freely hosted site. It’s huge.

Between reading through the callGraph and some targeted searching, I’m reasonably confident that I understand how act processes inputs from action.yml as well. My understanding is as follows:

1. In the runner package, setupActionInputs() gets a function for how to step through an action.yml file from the appropriate model source
2. and fills an object action with the contents of the actions file accordingly, including several input keys by their ids.
3. It then interpolates the default value for that input, if it exists, or the input if applicable.

Walking through the model, it also defines the default input based on the associated default parameter in action.yml

The answer was in the first place I looked

At this point I’ve got some understanding that, in fact, neither act, nor github actions does any kind of sneaky backfilling of the defaults. They both read only from the default value for the input. act may or may not actually respect YAML formatted variables, since I only saw it interpolating from the default parameter, but that’s more than likely me just not understanding go that well. So what’s going on? Why, when I’m not giving any input, nor is the action.yml defining a default, is getContext() not throwing errors at undefined variables?

Back in github actions core, my eyes skipped right over what’s going on. I correctly took in information about checking if the input has the required parameter true, and if it has no input then throwing an error. What I missed was the || condition. If there is no environment variable matching the one named, such as INPUT_STATIC_SITE_GENERATOR, getInput populates the local variable with an empty string!

An empty string, you will notice, is not undefined. D’oh.

However, an empty string does count as false-y for javascript, which is why when index.js/main() checks if (staticSiteGenerator) in a single conditional later, it fails and moves past that block. js is an abomination, and there’s just so much implicit behavior going on here, driven by language idioms.
